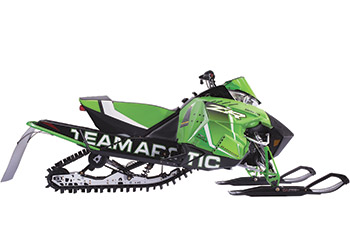

2016 ARCTIC CAT ZR 6000 R SX SNOCROSS SLED

ARCTIC CAT TECHNICAL SPECIFICATIONS

STANDARD FEATURES:

Hand warmers, thumb warmer, race-height windshield, check engine temp light, tether switch, V-Force reeds, adjustable timing-select module, ACT Hot start system, C&A PRO XT Snocross skis

OPTIONAL FEATURES:

VIP Data Acquisition System

2016 RACE UPDATES

– ProCross Chassis Design with Race Features
– Improved rear spar tunnel mounting brackets – Reinforced foot pocket
– Optional X-32 brake mounting features added
– 2.52” Pitch 9 tooth Track Drive shaft assembly, required for new track
– New 2.52” Pitch 129”x15”x1.75” SX track with 20% more effective lugs with optimized weight for improved traction and performance
– Race Proven Brake Caliper and Pads for improved wear and increased stopping power
– New brake pads with increased backer thickness for improved durability
– New Lightweight Stainless 2-pc brake disc for improved stopping power and reduced warping
– FOX 1.5 ZERO C Center Track Shock with wide range hand adjustable compression
– Revised Calibration for improved handling
– New Rear Arm Adjust “Hole Shot” device for improved starting line traction andperformance
– Borg Warner Chain and Sprockets for reduced stretch, lower friction, and increased strength
– New rear suspension rail cap for improved durability
– New Lightweight Torque Sensing link arm for improved durability
– New style retaining nuts in rear suspension for improved torque retention
– New steering support for reduced weight
– Revised driven clutch belt tensioner bolt for improved durability
– Revised PTO Engine plate assembly and mount orientation for improved durability and reduced engine movement
– Vent lines on carburetor have been removed
– New resonator outlet seal to prevent snow packing in belly pan
– New exhaust temp sensor for improved durability
– New bottom brake disc protector for improved brake cooling
– Addition of L/H spar pad for engine snubbing
– Revised chain case mounting and fasteners

ADDITIONAL FEATURES

– Offset Ski spacers for Adjustable Ski Stance
– High-Grip Seat Cover with Race Comfort Foam
– Race Proven TEAM Secondary Clutch with Race Driven Shaft
– FOX 2.0 ZERO RC Rear Track Shock with adjustable Compression and Rebound
– Float 3 EVOL RC Ski shocks with wide range hand adjustable Compression and Rebound Adjust
– Torque Overload Sensing (TOS) Bottom chain sprocket for eliminating spike loads into the drivetrain
