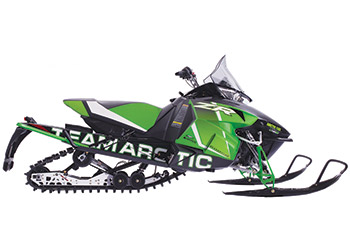

ARCTIC CAT TECHNICAL SPECIFICATIONS
STANDARD FEATURES:
Push-button engine reverse, dual halogen headlight (2-bulb), front bumper, adjustable handlebar, deluxe digital gauge, electric gas gauge, low oil light, coolant overheat light, coolant temp, intake air temp, low fuel light, high/ low hand & thumb warmers, accessory outlet, race-height windshield,
air pump, tether switch, handlebar pad
2016 RACE UPDATES:
– New Team Rapid Response Drive Clutch for improved durability and increased performance
– Revised driven clutch belt tensioner bolt for improved durability
– Borg Warner Chain and Sprockets for reduced stretch, lower friction, and increased strength
– Revised chain case mounting and fasteners
– Brake Pads friction material has changed back to T-124 for increased pad life
– New rail for additional mounting holes for front arm shock (ice racing)
– New style retaining nuts in rear suspension for improved torque retention
– Revised Rear shock valving for improved handling and increased rebound control
– New Lightweight Torque Sensing link arm for improved durability
– Fully Clipped Cobra Track for improved ice racing performance
– New ECM map for improved durability and performance
– New Piston for improved durability
– New exhaust system with lightweight resonator, and improved mounting, reducing weight by 7 lbs and reducing
exhaust capping
– New exhaust temp sensor for improved durability
– New upper intake material reducing weight and increased durability, including the addition of a secondary intake screen for added protection
– New steering support for reduced weight and moved location of the tether
– Revised PTO Engine plate assembly and mount orientation for improved durability and reduced engine movement
– Improved oil line routing from oil tank to engine to work around new exhaust system
– New lightweight/high strength handlebar for reduced weight
– New handlebar grips for improved rider ergos, increased heater efficiency, and increased durability
– New bottom brake disc protector for improved brake cooling
ADDITIONAL FEATURES:
– Arctic Cat Built 2-stroke C-TEC2 engine with Electronic Fuel and Oil Injection
– Stationary Clutch Guard with Spare Belt mounting
– Offset Ski spacers for Adjustable Ski Stance
– 2.86-inch Pitch 8 tooth Track Drive shaft for Added Ground Clearance
– High-Grip Seat Cover with Race Comfort Foam
– Torque Overload Sensing (TOS) Bottom chain sprocket for eliminating spike loads into the drivetrain
– Race Proven Brake Caliper and Pads for improved wear and increased stopping power
